Aluminium filters

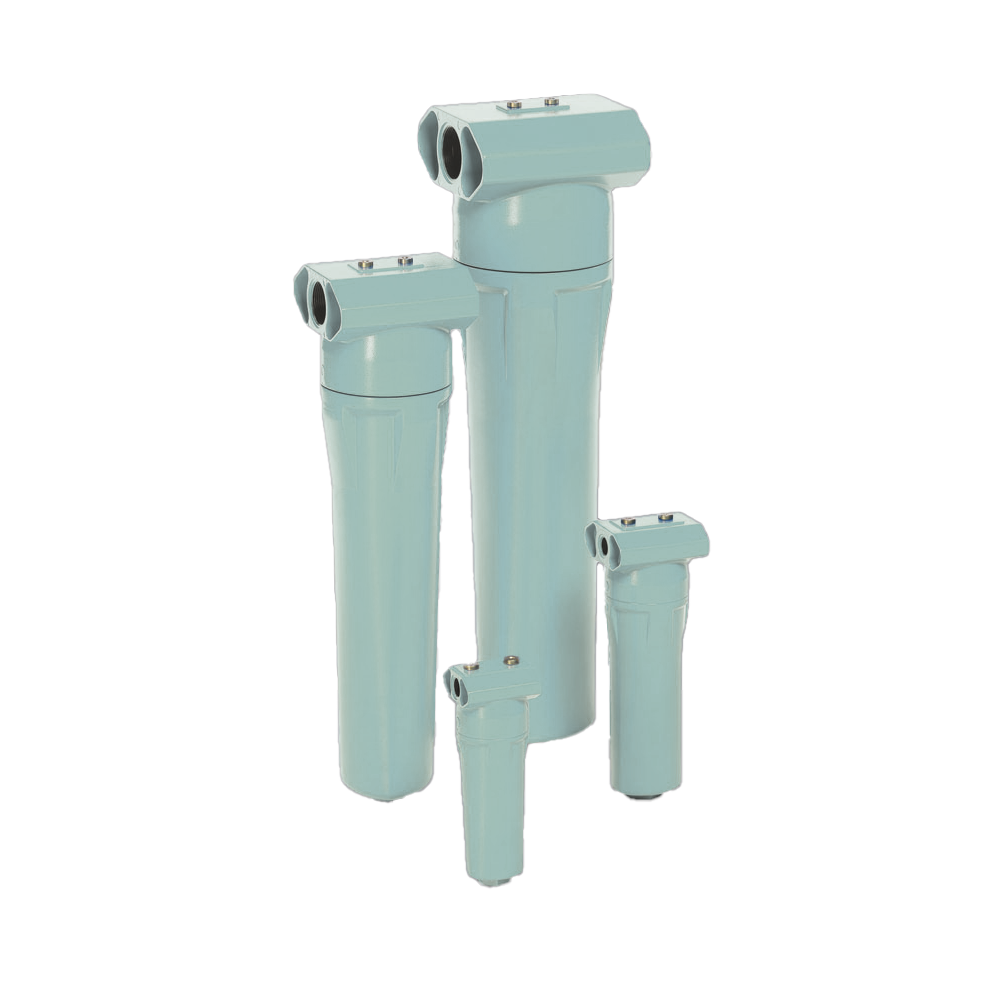

VMC MAL FILTERS
Description
Compressed air filters are designed for the protection of the downstream compressed air system and equipment with lower airflows against defects and other failures. They ensure high efficient removal of solid particles, water, oil aerosols, hydrocarbons, odor and vapors from compressed air systems up to 16 bar. Required compressed air quality according to standard ISO 8573 can be achieved with 9 different grades of filter elements. Optional internal and external condensate drains should be used for efficient condensate draining from the filter housing.
Quality in every detail
High quality compressed air was always our priority. Quality means less downtime of production processes, leading to your higher profits, and greater satisfaction as a professional in this field.
Corrosion protection is assured by KTL Cataphoretic
coating (internal & external), which provides excellent
chemical resistance to agressive industrial or even salty
environment. KTL also serves as an excellent primer for
external powder paint finish.
Technical data
| operating pressure | 16 bar |
| volume flow rate | 60 to 2760 Nm3/h |
| connections | 1/2’’ to 3’’ |
| operating temp. range | 1,5 to 65 °C (higher temperature on request) |
Accessories
Electronic “zero loss” condensate drains. Capacity 12-150 l/min and several voltages.
Conventional flotdrain made in aluminum.
Timer drain, 16 bar with adjustable timer and blow time. Available in several pressures and voltages.
